Getting Started

This tutorial introduces the core concepts of pylinkage and walks you through building and simulating your first linkage mechanism.

Installation

Install pylinkage using pip:

pip install pylinkage

Or with uv:

uv add pylinkage

Core Concepts

Pylinkage models planar linkage mechanisms with three kinds of objects from the components / actuators / dyads packages, plus a thin container:

  1. Components: building blocks of the mechanism (Ground anchors, Crank / LinearActuator drivers, and dyads such as RRRDyad, FixedDyad, RRPDyad).

  2. Linkage: a pylinkage.simulation.Linkage that orders those components and advances them through a motion cycle.

  3. Simulation: either the linkage.step() generator or the numba-accelerated linkage.step_fast() / step_fast_with_kinematics().

Component Types

Pylinkage provides several component types:

  • Ground (from pylinkage.components): a fixed point in space (used as an anchor on the frame).

  • Crank (from pylinkage.actuators): a rotating motor that drives the mechanism, given a ground anchor, a radius and an angular velocity.

  • RRRDyad (from pylinkage.dyads): a pin joint constrained to a pair of anchors via circle-circle intersection (two distances).

  • FixedDyad (from pylinkage.dyads): a point that sits at a fixed distance and angle from two anchors (rigidly attached to a link).

  • RRPDyad (from pylinkage.dyads): a slider — a pin joint whose position is constrained by a line through two anchors.

Your First Linkage: Four-Bar Mechanism

A four-bar linkage is the simplest closed-loop mechanism. Let’s build one step by step.

Step 1: Import the building blocks

from pylinkage.actuators import Crank
from pylinkage.components import Ground
from pylinkage.dyads import RRRDyad
from pylinkage.simulation import Linkage

Step 2: Define the components

We need two ground anchors, a crank (motor), and an RRR dyad that closes the loop:

from pylinkage.actuators import Crank
from pylinkage.components import Ground
from pylinkage.dyads import RRRDyad
from pylinkage.simulation import Linkage

# Ground anchors — two fixed points on the frame.
A = Ground(0.0, 0.0, name="A")
D = Ground(3.0, 0.0, name="D")

# Crank — rotates about A with radius 1, one step = 0.31 rad.
crank = Crank(
    anchor=A,
    radius=1.0,
    angular_velocity=0.31,
    name="Crank",
)

# Coupler-rocker pin joint — closes the loop between the crank tip
# and the ground anchor D.
pin = RRRDyad(
    anchor1=crank.output,   # tip of the crank
    anchor2=D,
    distance1=3.0,          # coupler length (B → C)
    distance2=1.0,          # rocker length  (C → D)
    name="Output",
)

Step 3: Create the linkage

Wrap the components in a Linkage:

linkage = Linkage(
    [A, D, crank, pin],
    name="Four-bar linkage",
)

Step 4: Simulate the motion

Run the generator through one full revolution:

# ``linkage.step()`` yields the positions of every component at each step.
loci = tuple(linkage.step())

# loci[i] is a tuple of (x, y) coordinates in the component order.
print(f"Simulation steps: {len(loci)}")
print(f"Final crank tip: {loci[-1][2]}")
print(f"Final output point: {loci[-1][3]}")

For a numba-accelerated simulation that returns a contiguous numpy array, call linkage.step_fast() instead — same result, one to two orders of magnitude faster for large iteration counts.

Step 5: Visualize the linkage

Use the built-in visualizer to watch the mechanism move:

import pylinkage as pl

pl.show_linkage(linkage)

This opens a matplotlib window with the linkage animating through its motion cycle.

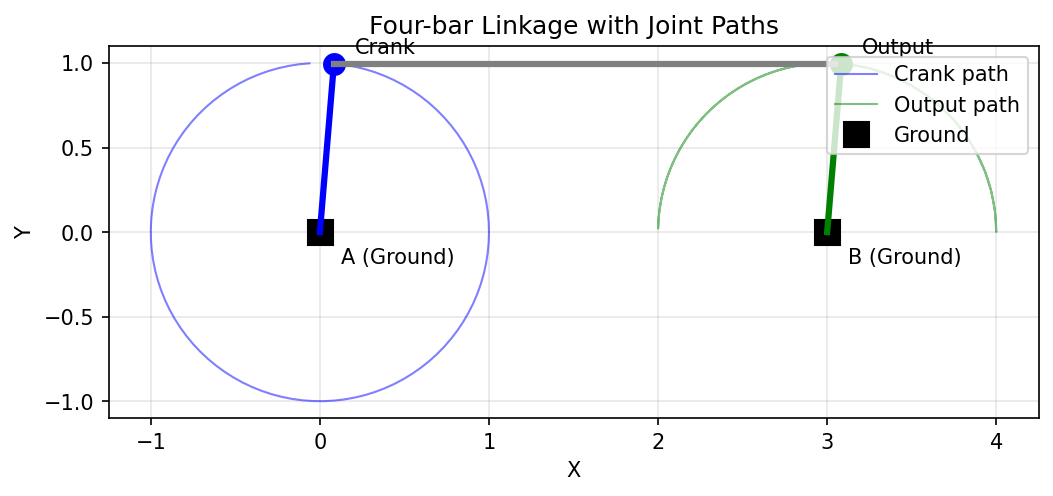

Four-bar linkage with joint paths

A four-bar linkage showing the paths traced by each joint during simulation.

To see multiple positions of the linkage overlaid, you can run the simulation and plot at different crank angles:

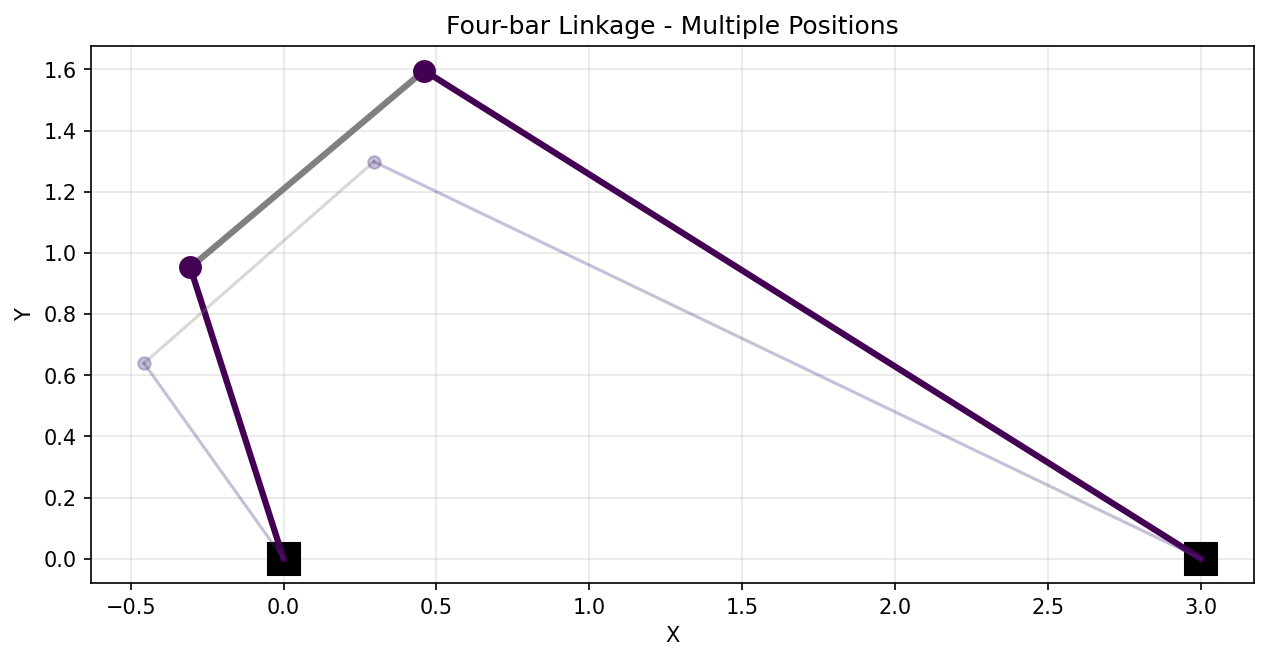

Four-bar linkage at multiple positions

The same four-bar shown at 8 different positions throughout its motion cycle.

Complete Example

Here’s the complete code:

import pylinkage as pl
from pylinkage.actuators import Crank
from pylinkage.components import Ground
from pylinkage.dyads import RRRDyad
from pylinkage.simulation import Linkage

# Components
A = Ground(0.0, 0.0, name="A")
D = Ground(3.0, 0.0, name="D")
crank = Crank(anchor=A, radius=1.0, angular_velocity=0.31, name="Crank")
pin = RRRDyad(
    anchor1=crank.output,
    anchor2=D,
    distance1=3.0,
    distance2=1.0,
    name="Output",
)

# Linkage
linkage = Linkage([A, D, crank, pin], name="Four-bar linkage")

# Visualize
pl.show_linkage(linkage)

Understanding the Constraint System

Each component has one or more geometric constraints (a crank radius, two distances on an RRR dyad, a distance and an angle on a fixed dyad, …). The linkage exposes them as a flat list so optimization code can treat every constraint uniformly:

# Get all constraints as a flat list.
constraints = linkage.get_constraints()
print(f"Constraints: {constraints}")
# → [1.0, 3.0, 1.0]  (crank radius, d1, d2 on the RRR dyad)

# Modify and apply.
constraints[0] = 1.5          # Bigger crank radius
linkage.set_constraints(constraints)

# Joint positions
coords = linkage.get_coords()
print(f"Component positions: {coords}")

Handling Errors

Some configurations are geometrically impossible. Pylinkage raises UnbuildableError when a linkage cannot be assembled:

try:
    tuple(linkage.step())
except pl.UnbuildableError:
    print("Linkage cannot be built with these constraints")

Next Steps

Now that you understand the basics:
